I. Why Is a "Mechanical" System Needed?

In underground coal mines, the reliability of electrical systems is always under severe challenge—moisture, vibration, and dust can cause electrical faults or even short circuits. If the Automatic Fire Suppression System itself relies on electric power for actuation, once a fire causes a power supply interruption, the suppression device will also be paralyzed.

The Gmfire explosion-proof trackless rubber-tired vehicle Automatic Fire Suppression System is designed precisely to address this pain point. Its core design philosophy is "no electricity, no pressure"—the entire device requires no external power supply, and the detection piping is under no pressure during normal inspection. It adopts a purely physical mechanical automatic detection and actuation method, triggering the fire suppression procedure through the physical deformation of thermal elements. When the temperature in the protected space reaches the set threshold, the thermal element automatically acts, mechanically opening the suppression agent valve, and the suppression agent is delivered through customized piping directly above the fire source for discharge.

This design brings three major advantages: first, intrinsic safety, completely eliminating the risk of secondary explosions caused by electrical sparks; second, usability during power outages, still functioning normally under extreme conditions such as a mine-wide power failure; third, rapid response, completing the entire process from temperature threshold attainment to agent discharge within a few seconds, effectively shortening the fire response time.

The system also supports three activation modes: mechanical automatic, manual, and emergency. A manual activation device is provided in the driver's cab, allowing the driver to trigger it immediately upon detecting a fire; the emergency start provides the final safeguard for the system.

II. Why Choose "Water-Based Fine Spray"?

Once the reliable actuation method is determined, the next key question is: what to use to suppress the fire?

Water-based extinguishing agents have become an ideal choice for explosion-proof trackless rubber-tired vehicles due to their unique fire-suppression mechanisms. Water-based agents combine both physical and chemical fire suppression effects—on one hand, they absorb a large amount of heat through water evaporation, rapidly reducing the fire zone temperature; on the other hand, they decompose at high temperatures to release free radicals that interact with active free radicals in the combustion process, interrupting the chain reaction of combustion. This dual "cooling + flame inhibition" mechanism enables water-based agents not only to quickly extinguish open flames but also to effectively suppress re-ignition.

The fine spray technology further maximizes the performance of water-based extinguishing agents. The system uses dedicated metal rigid piping as the delivery pipeline, and the nozzles can be precisely adjusted according to protection requirements. The nozzle cap design effectively prevents dust blockage. The extinguishing agent is evenly applied over the burning surface in the form of a fine water mist, which not only ensures fire suppression effectiveness but also avoids waste caused by excessive spraying.

In practical applications, the water-based fine spray system has demonstrated outstanding fire-suppression performance. The device provides a long effective discharge time, ensuring sufficient extinguishing agent is continuously delivered to cover the fire source. Water-based agents are environmentally non-polluting and non-corrosive to equipment; after suppression, they do not cause secondary damage to precision components inside the engine compartment, greatly reducing equipment downtime and maintenance costs.

III. From Theory to Practice: Successful Applications in Underground Coal Mines

The combined solution of mechanical actuation and water-based fine spray has been verified in practice at multiple coal mines.

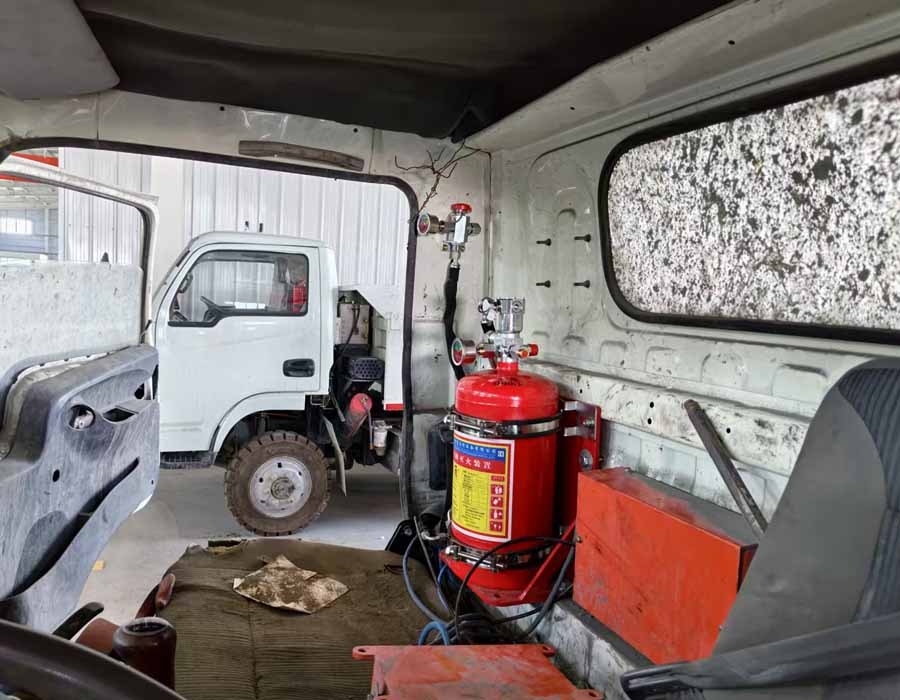

Taking a coal mine in Kazakhstan as an example, the mine installed the mechanical "no-electricity, no-pressure" Automatic Fire Suppression System on two new-energy trackless rubber-tired vehicles and one diesel trackless rubber-tired vehicle. The technical teams from both sides conducted detailed scheme designs covering installation locations, detector layout, and nozzle settings. The device uses a water-based blended extinguishing system, with an effective discharge time of no less than 35 seconds, equipped with dual-threshold temperature detectors set at 141°C and 182°C, and uses a water-based extinguishing agent capable of withstanding low temperatures down to -40°C.

The Gmfire explosion-proof trackless rubber-tired vehicle Automatic Fire Suppression System has also been widely applied in mining sectors in Indonesia, Pakistan, Saudi Arabia, and other regions, effectively solving fire protection challenges for underground explosion-proof vehicles including personnel carriers, explosive transport vehicles, jeeps, pickup trucks, and combined passenger-cargo mining trucks. The device integrates core technologies such as fire detection, signal transmission, early warning, and piping-network spray, enabling early detection and effective control of fire hazards without requiring any operator action.

IV. The Value of This "Golden Combination"

The mechanical actuation solves the reliability issue of "how to activate"—no electricity required, purely physical triggering, and triple safeguards. The water-based fine spray solves the effectiveness issue of "what to use to suppress"—dual mechanisms, precise spraying, and residue-free, non-corrosive performance. Together, they constitute a reliable and highly effective Automatic Fire Suppression System solution for explosion-proof trackless rubber-tired vehicles.

With the ongoing advancement of intelligent coal mine construction, this "golden combination" continues to evolve. Building on the mechanical and water-based spray foundation, the system can be extended with remote signal monitoring, remote activation, and other functions, and supports integration with mine fire safety system platforms. The Gmfire explosion-proof trackless rubber-tired vehicle Automatic Fire Suppression System is evolving from a single passive protection device toward an integrated smart fire protection platform that combines detection, early warning, suppression, and management.
